Cta-2006 Compliant

Number of Channels

5

Total Power (Sum of Rated Power)

1500 Watts

Rated Power (RMS Continuous Power)

CTA-2006 Continuous Power Rating ≤1.0% THD+N 100W x 4 + 400W x 1 @ 4Ω 100W x 4 + 600W x 1 @ 2Ω N/A x 4 + 600W x 1 @ 1Ω 200W x 2 + N/A x 1 @ 4Ω Bridged

Dynamic Power (PVC/PowerCube®)

CTA-2006 Dynamic Power Rating 125W x 4 + 400W x 1 @ 4Ω 200W x 4 + 700W x 1 @ 2Ω N/A x 4 + 700W x 1 @ 1Ω 400W x 2 + N/A x 1 @ 4Ω Bridged

Bridgeable

Yes

Frequency Response

10Hz - 50kHz

Input Sensitivity

150mVrms - 12Vrms

Circuit Topology Class

Class-AD (front/rear channels) Class-BD (sub channel)

Efficiency (average)

>75%

Total Harmonic Distortion (THD+Noise)

<0.2% THD+N @ 1 Watt

Signal Input

Low-Level: 2 RCA High-Level: 4-Pin Molex

Signal Output

—

Tone Controls

Front/Rear: 0-14dB @ 12.5kHz Front/Rear: 0-18dB @ 45Hz Sub: 0-18dB @ 45 Hz

Crossover Controls

High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Infrasonic: 30 Hz @ 12dB/Octave Butterworth

Remote Controls

No

Visual Indicators

Power: Blue Protect: Red Input Clip: Red Output Clip: Blue/Red

Power Wire Gauge

4 AWG

Power Input Connector

Compression Terminal Block

Speaker Wire Gauge

16 AWG

Speaker Output Connector

4-Pin Molex

Cooling

Convection

Heatsink

Extruded Aluminum

Operating Voltage

9 - 16 VDC

Recommended Fuse (not included)

80A MAXI Littelfuse #0299080

Average Current Draw (13.8V Music)

2Ω Stereo + 1Ω Sub: 48 A

Max. Current Draw (13.8V Sinewave)

2Ω Stereo + 1Ω Sub: 123 A

Suggested Alternator

—

Included in the Box

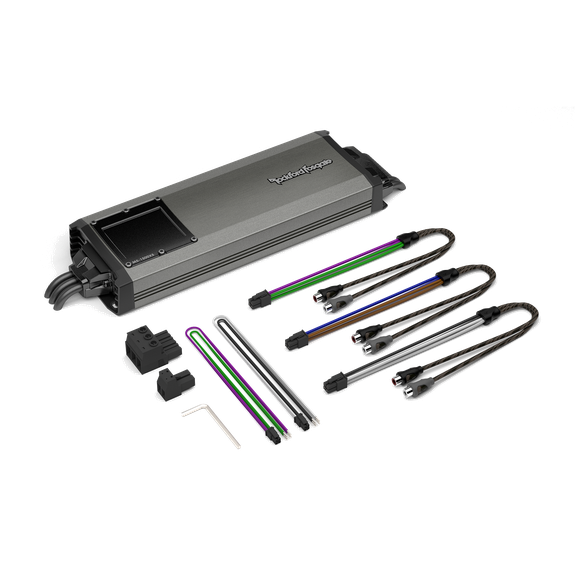

(1) Control Cover (1130-75511-01) (1) Extension Harnesses (1130-75507-01) (1) Pwr/Gnd/Rem Connector (1040-60814-01) (1) Front/Rear/Sub RCA Harness (1130-70118-01) (1) Front Speaker Out Harness (1560-56568-01) (1) Rear Speaker Out Harness (1560-56544-01) (1) Subwoofer Out Connector (1040-56811) (1) Allen wrench (1) RF sticker (1) PRESET warning label (1) Performance verification certificate

Dimensions (H x W x D)

1.7" x 4.25" x 12.3" (42.8 mm x 108 mm x 311.4 mm) Does not include harnesses

Shipping Weight

6 Lbs. (2.7 Kg.)
